DC Cooling Fan 60 Series Specifications
X: "B" Two Ball Bearing | "H" Hydraulic Bearing | "S" Sleeve Bearing
Technical Specifications (DC-60 Series)
| Model | Size (mm) | Voltage (VDC) | Current (A) | Speed (RPM) | Airflow (CFM) | Noise (dBA) | Bearing Type |
|---|
Product Images

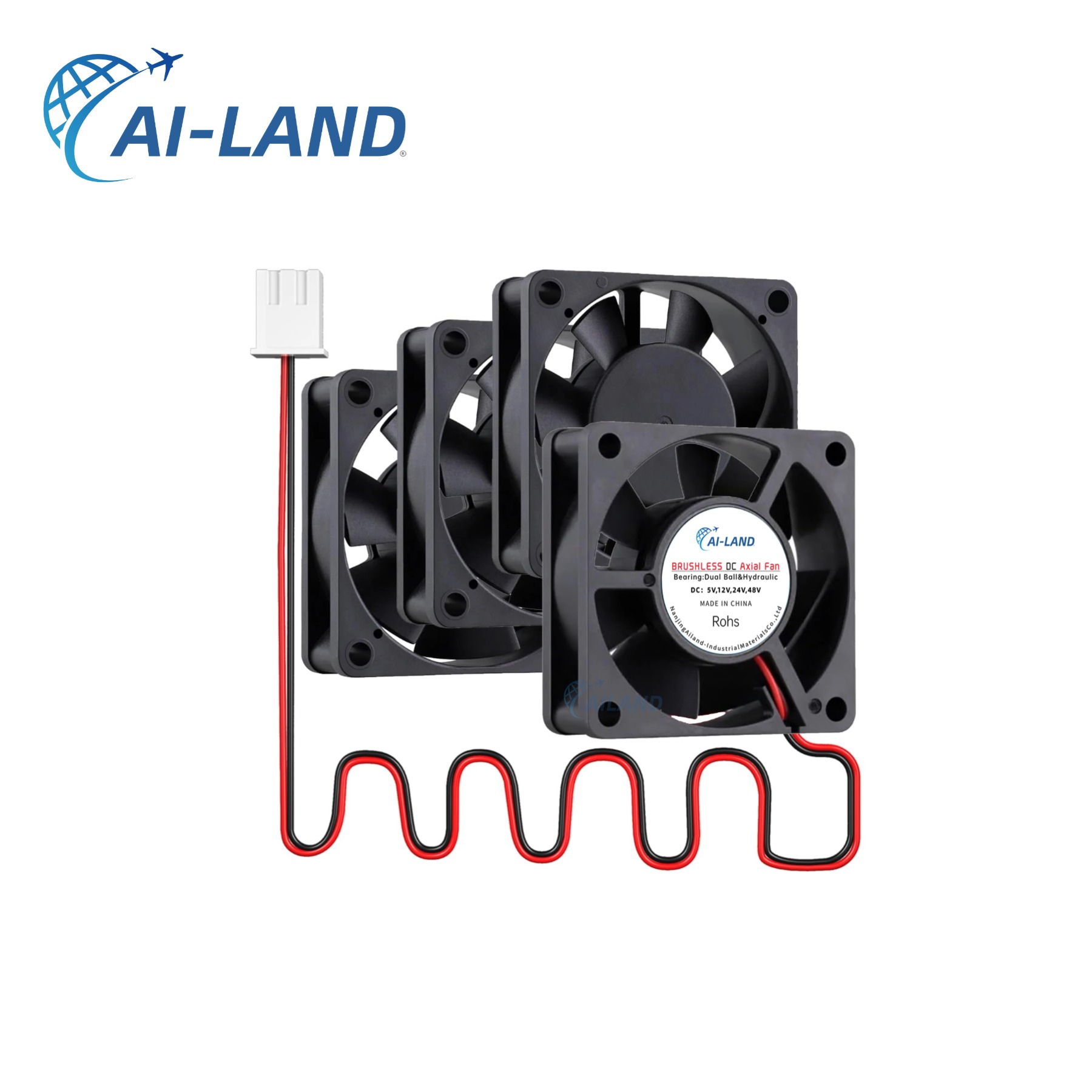

Front View

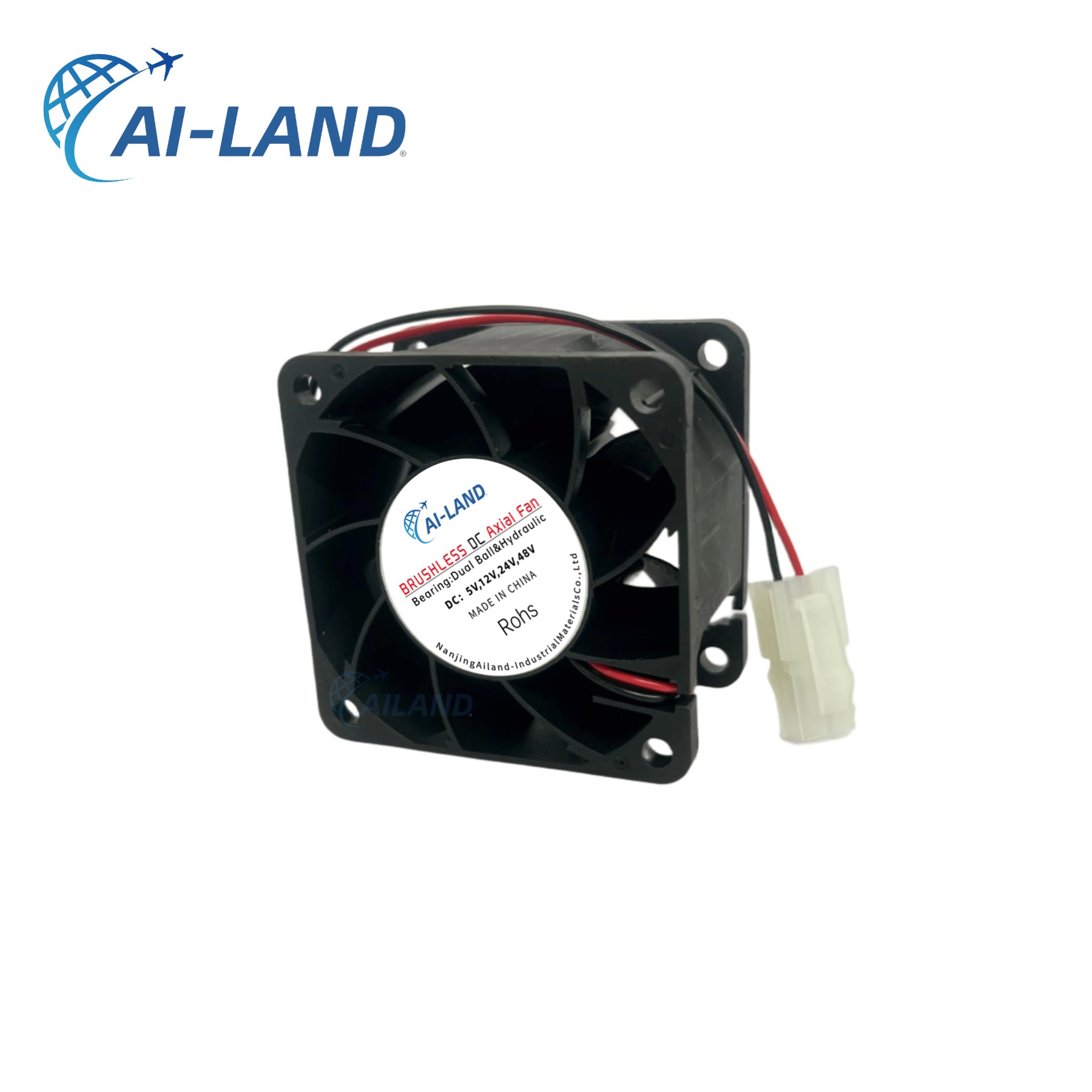

Side View
Back View
Technical Datasheet & Specifications
Document Preview
DC AXIAL FLOW FANS
Technical Specifications & Performance Data
Performance Characteristics
- • Operating Temperature: -20°C to +70°C
- • Bearing Type: Ball/Hydraulic Bearing
- • Insulation Class: Class B (130°C)
- • Protection Grade: IP44
- • Precision Tolerance: ±0.1mm
Material Specifications
- • Frame: High-grade ABS/PC/PP plastic
- • Impeller: Impact-tested thermoplastic
- • Motor: Copper coil brushless DC
- • PCB: Precision circuit board
- • Wiring: UL1007 AWG24
Quality Standards
- • ISO9001 & IATF16949 Certified
- • ISO14001 Environmental Standard
- • ISO13485 Medical Device Quality
Certifications
- • UL, CE, FCC, ETL Approved
- • RoHS & REACH Compliant
Testing & Validation
- • Airflow & Pressure Testing
- • Speed & Static Performance
Product Applications
Industrial Machinery
Robust cooling for welding equipment, control cabinets, and manufacturing automation systems. Designed for harsh environments, ensuring reliability and longevity for critical industrial processes.
Ventilation Systems
Effective air circulation for commercial and residential ventilation, air purifiers, and dehumidifiers. Our fans provide a powerful and quiet solution for maintaining air quality and comfort.
Network & Server Equipment
High-performance thermal management for data centers, network switches, and server racks. Delivering maximum airflow with a stable power source to maintain uptime in mission-critical environments.
