DC Axial Flow Fan Product Specifications
High-performance thermal solutions with precision engineering and advanced fluid dynamics technology
Technical Specifications (DC-2510 Series)
| Model | Size (mm) | Voltage (V) | Speed (RPM) | Airflow (CFM) | Noise (dBA) | Current (A) | Power (W) |
|---|---|---|---|---|---|---|---|
| FD2510XH05 | 25x25x10 | 5 | 13000 | 2.91 | 30.58 | 0.18 | |
| FD2510XM05 | 25x25x10 | 5 | 10000 | 2.32 | 24.12 | 0.12 | |
| FD2510XS05 | 25x25x10 | 5 | 7000 | 1.55 | 18.66 | 0.1 | |
| FD2510XH12 | 25x25x10 | 12 | 13000 | 2.91 | 30.58 | 0.14 | |
| FD2510XM12 | 25x25x10 | 12 | 10000 | 2.32 | 24.12 | 0.08 | |
| FD2510XS12 | 25x25x10 | 12 | 7000 | 1.55 | 18.66 | 0.06 | |
| FD2507XH05 | 25x25x07 | 5 | 14000 | 2.71 | 26.35 | 0.16 | |
| FD2507XM05 | 25x25x07 | 5 | 12000 | 2.35 | 23.55 | 0.13 | |
| FD2507XS05 | 25x25x07 | 5 | 9000 | 1.82 | 20.55 | 0.12 | |
| FD2507XH12 | 25x25x07 | 12 | 14000 | 2.71 | 26.35 | 0.12 | |
| FD2507XM12 | 25x25x07 | 12 | 12000 | 2.35 | 23.55 | 0.11 | |
| FD2507XS12 | 25x25x07 | 12 | 9000 | 1.82 | 20.55 | 0.08 |
Product Images

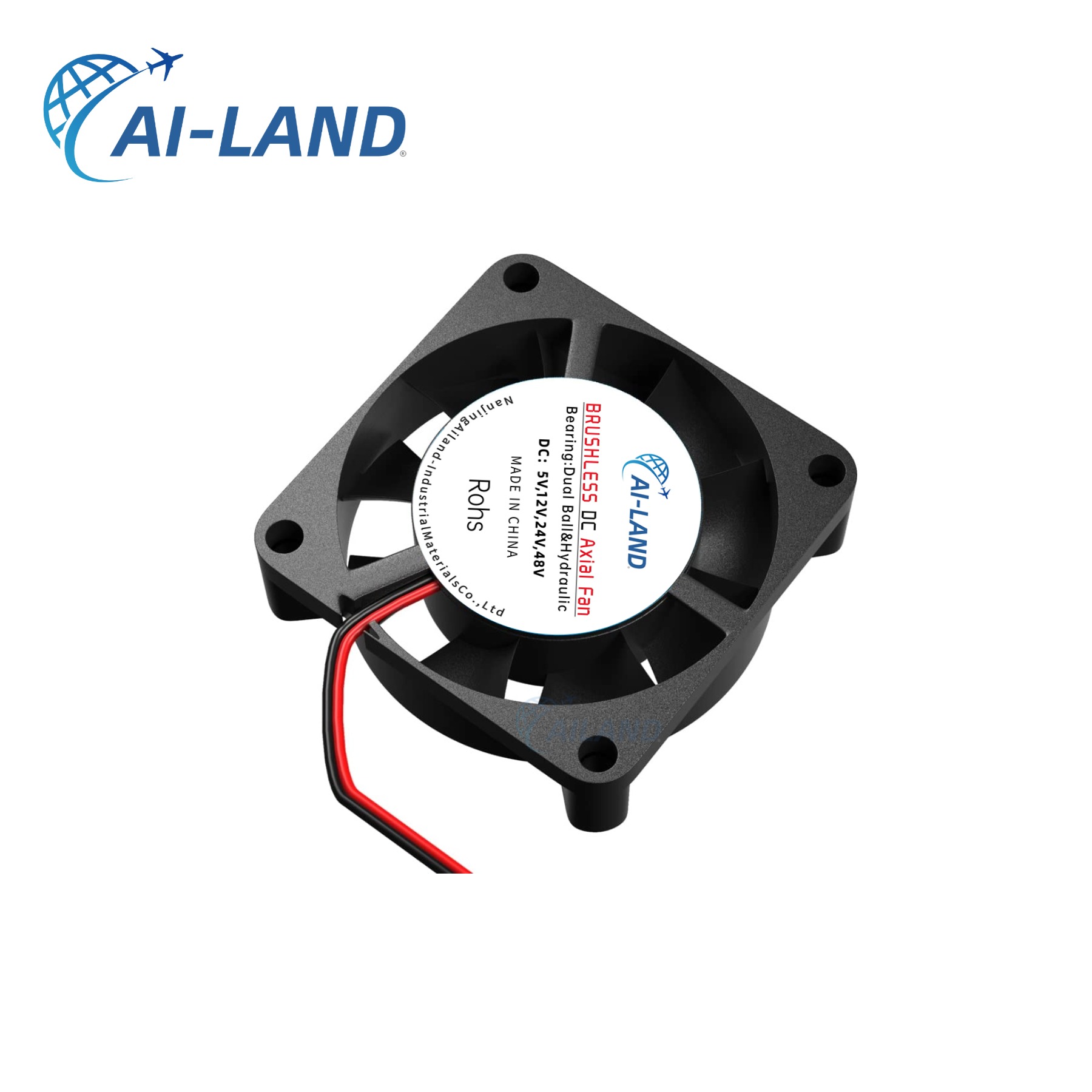

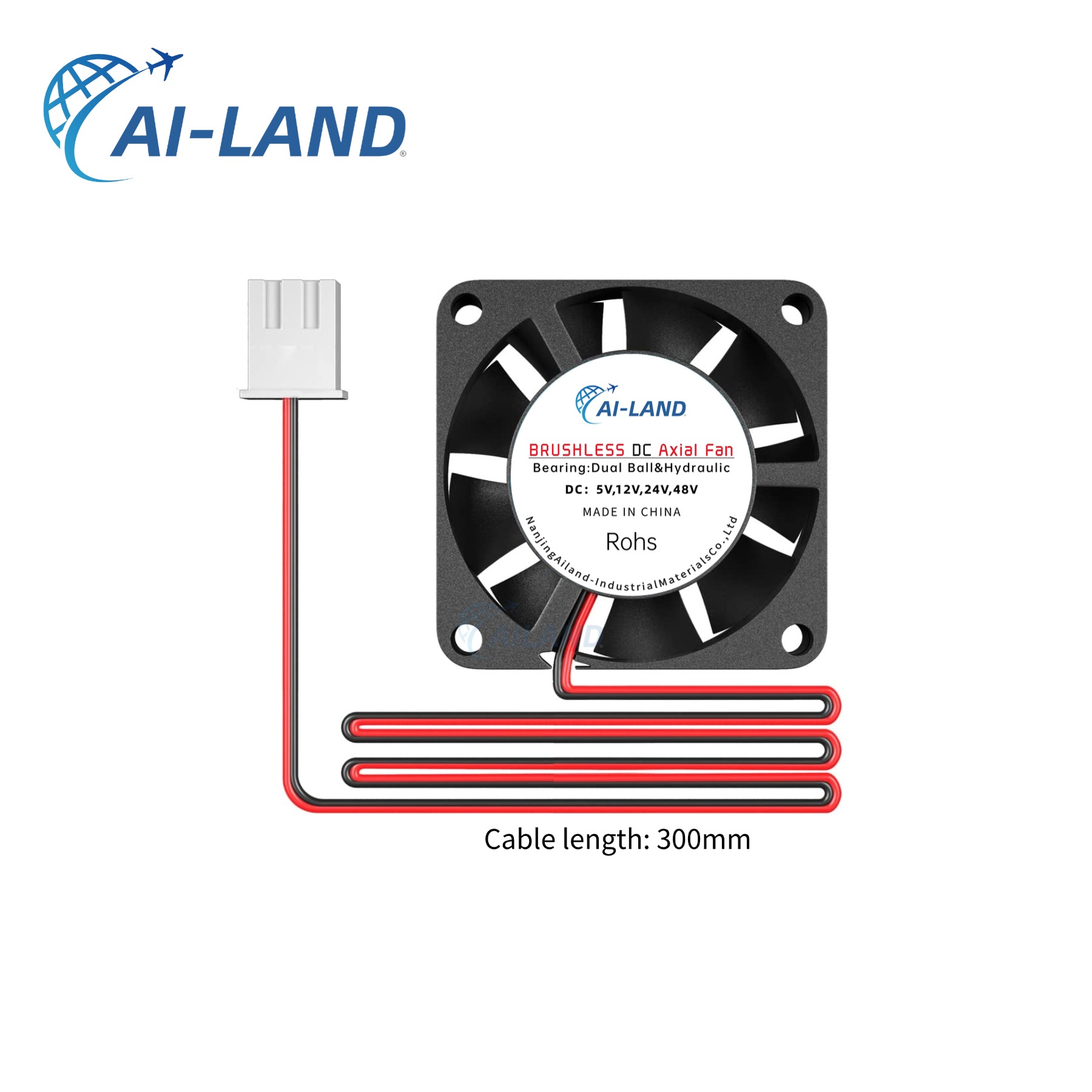

Front View
Side View
Back View
Technical Datasheet & Specifications
Document Preview
DC AXIAL FLOW FANS
Technical Specifications & Performance Data
Performance Characteristics
- • Operating Temperature: -20°C to +70°C
- • Bearing Type: Ball/Hydraulic Bearing
- • Insulation Class: Class B (130°C)
- • Protection Grade: IP44
- • Precision Tolerance: ±0.1mm
Material Specifications
- • Frame: High-grade ABS/PC/PP plastic
- • Impeller: Impact-tested thermoplastic
- • Motor: Copper coil brushless DC
- • PCB: Precision circuit board
- • Wiring: UL1007 AWG24
Quality Standards
- • ISO9001 & IATF16949 Certified
- • ISO14001 Environmental Standard
- • ISO13485 Medical Device Quality
Certifications
- • UL, CE, FCC, ETL Approved
- • RoHS & REACH Compliant
- • Energy Star Certified
Testing & Validation
- • Airflow & Pressure Testing
- • Speed & Static Performance
- • Drop & Temperature Rise Tests
- • Impact Resistance Validation
Download Complete Datasheet
Product Applications
Medical Equipment
Critical cooling solutions for MRI machines, CT scanners, ventilators, and diagnostic equipment. Our fans ensure optimal operating temperatures for life-saving medical devices with ultra-quiet operation and hospital-grade reliability.
UAV & Drone Systems
Lightweight, high-efficiency cooling for drone electronics, flight controllers, and thermal cameras. Engineered for extreme conditions with vibration resistance and extended flight time optimization.
Network & Server Equipment
High-performance thermal management for data centers, network switches, routers, and server racks. Delivering maximum airflow with energy efficiency to maintain optimal performance in mission-critical environments.
